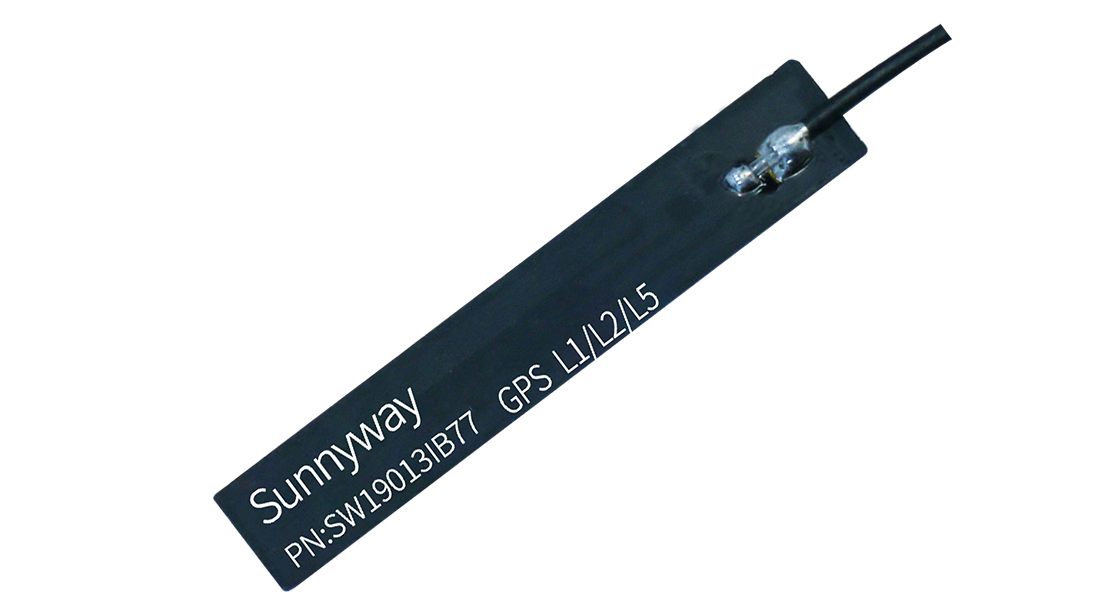

SWF005

GLONASS GALILEO BEIDOU

Dimensions (mm):39.0(L) x 6.5 (W) x 0.12 (H)
PN:SW19013IB77

Specifications
  • General SpecificationsGeneral Specifications
  • PNSW19013IB77
  • StandardsGPSL1+L2+L5/GLONASS/GALILEO/BEIDOU
  • Frequency (MHz)1176,1227,1559,1575,1602
  • VSWR1.97,1.8,1.76,1.6,1.47
  • Peak Gain (dBi)2.0,1.6,2.8,3.0,3.5
  • Dimensions (mm)39.0(L) x 6.5(W) x 0.12 (H)
  • Cable length(mm) 220
