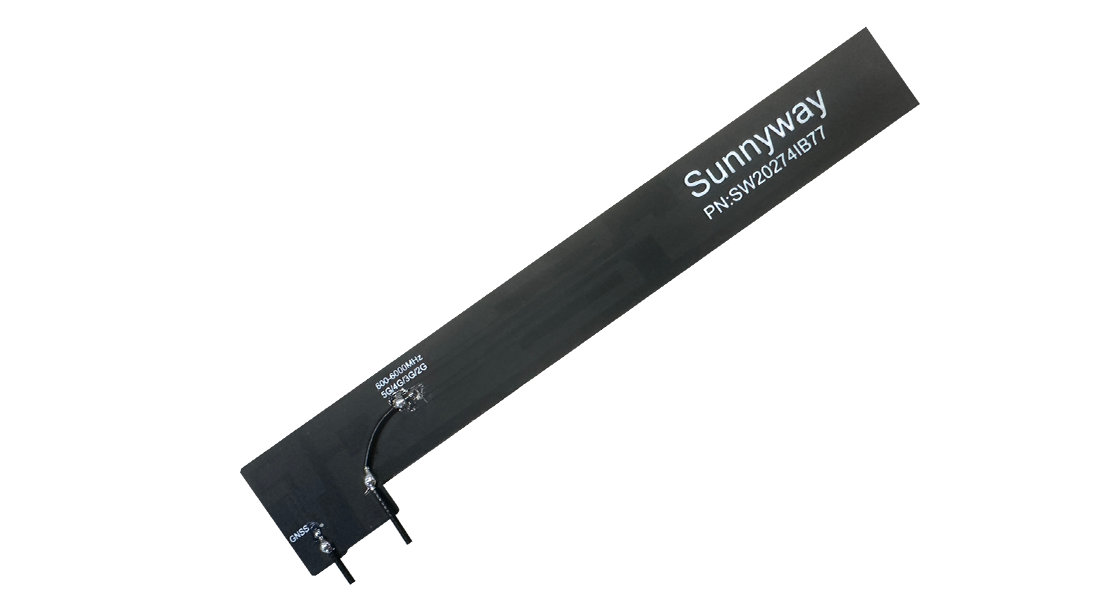

SWF012

5G GPS GLONASS GALILEO

Dimensions (mm):151.0(L) x25.0 (W) x 0.12 (H)
PN:SW20274IB77

Specifications
  • General SpecificationsGeneral Specifications
  • PNSW20227IB77
  • Standards5G/4G/3G/2G & GPS/GLONASS/GALILEO
  • Frequency (MHz)1575,1602 & 600-960/1400-2700/3000-6000
  • VSWR1.1,1.2 & <2.9,<2.5, <2.6
  • Peak Gain (dBi)3.0,2.5 & 0.4~3.1,2.3~5.4,1.0~4.8
  • Dimensions (mm)151.0(L) x 25.0 (W) x 0.12 (H)
  • Impedance(Ohm) 100
