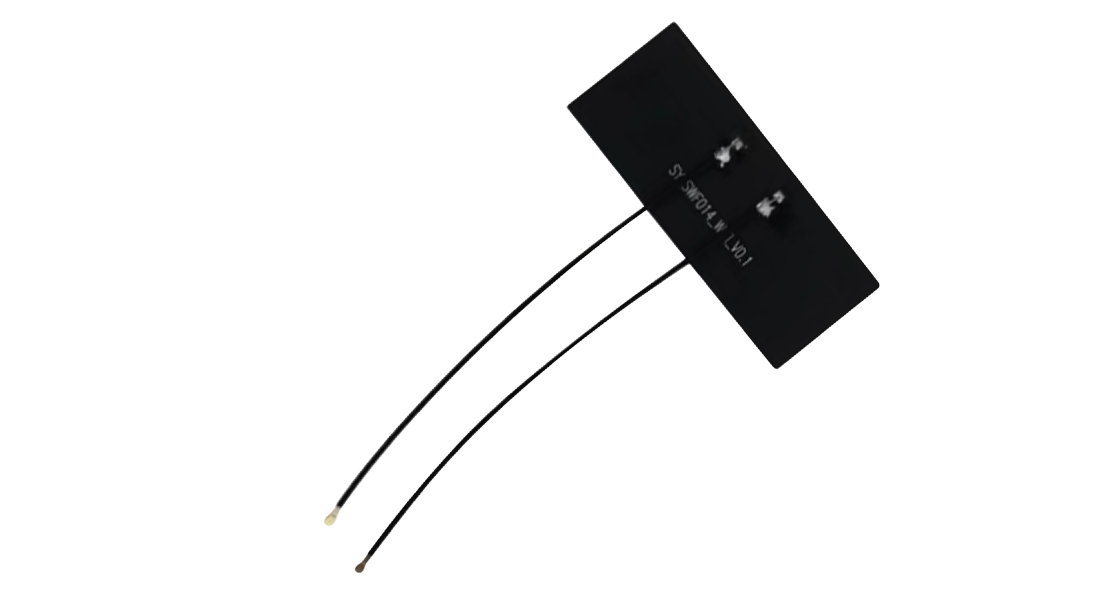

SWF014

WiFi 6E WIFI

Dimensions (mm):59.36(L) x24.15 (W) x 0.12 (H)
PN:SZ22232IB77

Specifications
  • General SpecificationsGeneral Specifications
  • PNSZ22232IB77
  • Standards2.4G WiFi/5.8G WiFi/WiFi6/6E & 2.4G WiFi/5.8G WiFI/WiFi6/6E
  • Frequency (MHz)2400~2500,5100~7125
  • VSWR<3.2,<3.3 & <3.5
  • Peak Gain (dBi)-2.04~2.29,4.87~6.56 & 1.08~1.53,1.73~7.7
  • Dimensions (mm)59.36(L) x 24.15 (W) x 0.12 (H)
  • Impedance(Ohm) 100
